Tutorial 0 - SARA-mini¶
This tutorial introduces the basic classes and methods of the SARAwater package.

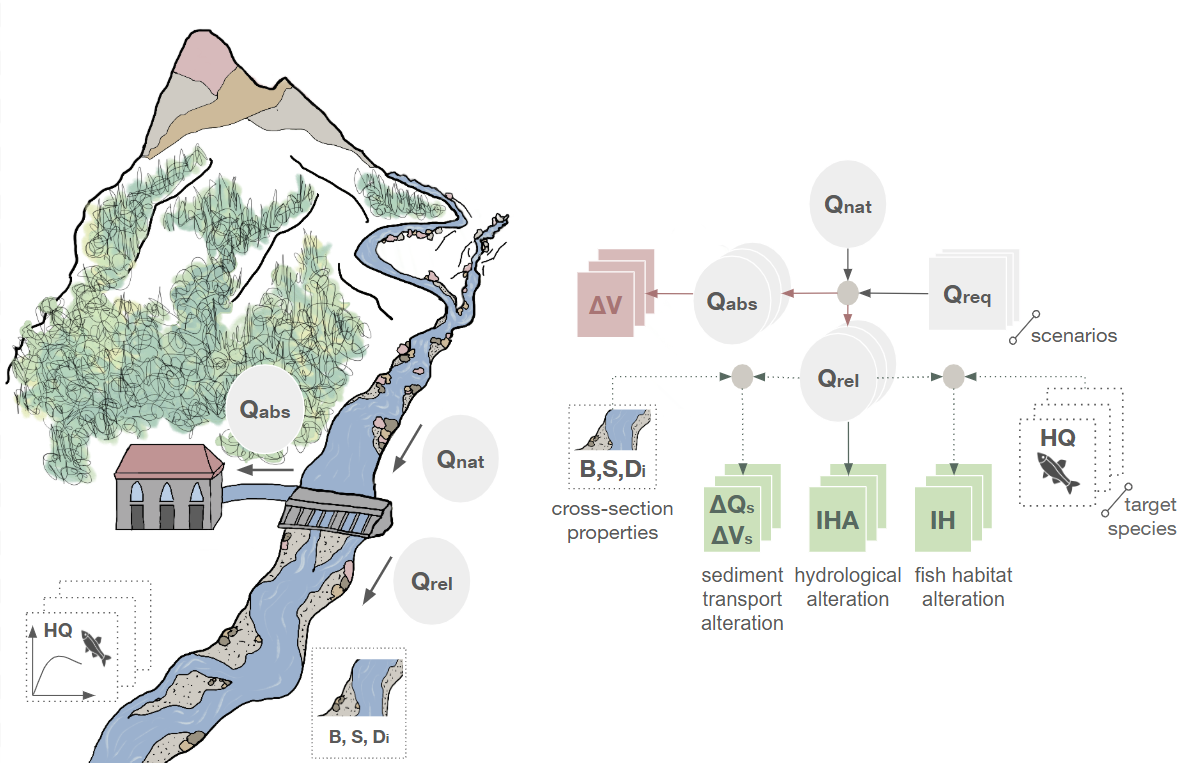

The figure below illustrates the workflow of the sarawater package, highlighting its components. In this tutorial, we will focus on the incoming flow time series (\(Q_{nat}\)), the flow requirement (\(Q_{req}\)), and the released flow time series (\(Q_{rel}\)). These three quantities contribute to the mass balance at the diversion, which reads
\begin{equation*} Q_{nat} = Q_{abs} + Q_{rel} \tag{1} \end{equation*}
Importing external libraries¶
Let’s start by importing the necessary external libraries.
[2]:
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from numpy import ndarray
Defining SARA classes¶
The classes defined below are a shrinked version of those implemented in the package. However, they are sufficient to get the basics off how SARA works!
The Scenario class and its child classes¶
The parent class Scenario and its child classes ConstScenario and PropScenario are used to define different water management scenarios for a river reach. Each scenario specifies how much water is required to be released from the reach (i.e., the “flow requirement”) based on different criteria.
[ ]:
class Scenario:
def __init__(self, name: str, description: str, reach, Qabs_max=None):
"""Parent class for all types of scenarios. Contains the name and description of the scenario.
Parameters
----------
name : str
Name of the scenario.
description : str
Description of the scenario.
reach : Reach
The reach object associated with this scenario.
Qabs_max : float, optional
Maximum value for the water abstraction, by default None (which takes the value from the reach object).
"""
self.name = name
self.description = description
self.reach = reach
self.Qreq = None # Flow requirement time series
self.Qrel = None # Released flow rate time series
if Qabs_max is None: # Maximum abstraction
self.Qabs_max = reach.Qabs_max
else:
self.Qabs_max = Qabs_max
@property
def Qnat(self) -> ndarray:
"""Get the natural flow rate time series from the associated Reach."""
return self.reach.Qnat
@property
def dates(self) -> list:
"""Get the dates from the associated Reach."""
return self.reach.dates
def compute_Qrel(self) -> ndarray:
"""Compute the released flow rate time series for the scenario.
Returns
-------
ndarray
Released flow rate time series.
"""
if self.Qreq is None:
raise ValueError("Qreq must be set before computing Qrel.")
Qrel = np.zeros_like(self.Qnat)
case1 = self.Qnat <= self.Qreq
case2 = (self.Qnat > self.Qreq) & (self.Qnat < self.Qabs_max + self.Qreq)
case3 = self.Qnat >= self.Qabs_max + self.Qreq
Qrel[case1] = self.Qnat[case1]
Qrel[case2] = self.Qreq[case2]
Qrel[case3] = self.Qnat[case3] - self.Qabs_max
self.Qrel = Qrel
return Qrel
ConstScenario: the child class for scenarios with fixed monthly flow requirements
[4]:
class ConstScenario(Scenario):
def __init__(
self, name: str, description: str, reach, Qreq_months: list[float], **kwargs
):
"""Constant flow rate scenario.
Parameters
----------
name : str
Name of the scenario.
description : str
Description of the scenario.
reach : Reach
The reach object associated with this scenario.
Qreq_months : list[float]
Monthly constant flow rates.
"""
super().__init__(name, description, reach, **kwargs)
if len(Qreq_months) != 12:
raise ValueError("Qreq_months must have 12 elements.")
self.Qreq_months = Qreq_months
# Map the monthly flow rates to the dates of the reach
self.Qreq = np.zeros_like(self.Qnat)
for i, month in enumerate(self.Qreq_months):
month_mask = np.array([date.month == i + 1 for date in self.dates])
self.Qreq[month_mask] = month
PropScenario: the child class for scenarios with flow requirements proportional to the incoming flow. In scenarios with a proportional flow requirement, \(Q_{req}\) is computed as a fraction of the incoming flow discharge, \(Q_{in}\), according to the formula:
\begin{equation*} Q_{req} = Q_{base} + c_{in} \cdot Q_{in} \tag{2}, \end{equation*}
where \(Q_{base}\) is a base flow requirement (e.g., to maintain minimum ecological conditions), and \(c_{in}\) is a coefficient that defines the proportion of the incoming flow to be included in the flow requirement.
This formula is then adjusted to ensure that \(Q_{req}\) remains within user-specified minimum and maximum bounds, \(Q_{req,min}\) and \(Q_{req,max}\), respectively. This step is needed because low flow requirements may cause severe alteration in the downstream reach, while high flow requirements may lead to a very low water abstraction, which might not be sufficient. The complete definition of \(Q_{req}\) in proportional scenarios is given by the piecewise function:
\begin{equation*} Q_{req}= \left\{ \begin{array}{lll} Q_{req,min} & \text{if} & Q_{base} + c_{in} \cdot Q_{in} \leq Q_{req,min}\\[1ex] Q_{base} + c_{in} \cdot Q_{in} & \text{if} & Q_{req,min} < Q_{base} + c_{in} \cdot Q_{in} < Q_{req,max}\\[1ex] Q_{req,max} & \text{if} & Q_{base} + c_{in} \cdot Q_{in} > Q_{req,max}\\ \end{array} \right. \tag{3} \end{equation*}
[ ]:
class PropScenario(Scenario):
def __init__(
self,
name: str,
description: str,
reach,
Qbase: float,
c_in: float,
Qreq_min: float,
Qreq_max: float,
**kwargs,
):
"""Proportional flow rate scenario.
Parameters
----------
name : str
Name of the scenario.
description : str
Description of the scenario.
reach : Reach
The reach object associated with this scenario.
Qbase : float
Base flow rate.
c_in : float
Coefficient for inflow.
Qreq_min : float
Minimum value for the prescribed minimum released flow rate.
Qreq_max : float
Maximum value for the prescribed minimum released flow rate.
"""
super().__init__(name, description, reach, **kwargs)
self.Qbase = Qbase
self.c_in = c_in
self.Qreq_min = Qreq_min
self.Qreq_max = Qreq_max
self.Qreq = Qbase + c_in * self.Qnat
self.Qreq[self.Qreq < Qreq_min] = Qreq_min
self.Qreq[self.Qreq > Qreq_max] = Qreq_max
The Reach class¶
[ ]:
class Reach:
def __init__(self, name: str, dates: list, Qnat: ndarray, Qabs_max: float):
"""Represents a river reach.
Parameters
----------
name : str
Name of the reach.
dates : list[datetime]
List of dates for the time series.
Qnat : ndarray
Natural flow rate time series.
Qabs_max : float
Maximum value for the water abstraction.
"""
self.name = name
self.dates = dates
self.Qnat = Qnat
self.Qabs_max = Qabs_max
self.scenarios: list[Scenario] = []
def __str__(
self,
): # This method defines what is returned when we print() a Reach object
return f"{self.name} is a Reach object with a flow time series with {len(self.Qnat)} elements. The date range starts from {min(self.dates)} and has {len(self.dates)} elements. The maximum flow abstraction is Qabs_max={self.Qabs_max} m3/s. So far, {len(self.scenarios)} scenarios have been added."
def add_scenario(self, scenario: Scenario):
"""Add a scenario to the reach.
Parameters
----------
scenario : Scenario
The scenario to add.
Returns
-------
Reach
The current reach instance.
"""
self.scenarios.append(scenario)
return self
def print_scenarios(self):
"""Print the list of scenarios added to the reach."""
for i, scenario in enumerate(self.scenarios):
print(f"scenarios[{i}]: {scenario.name} | {scenario.description}")
return None
Let’s create a Reach!¶
First, let’s specify the path to the input CSV file containing the flow discharge time series for the reach.
NOTE: the CSV file should have at least two columns: “Date” and “Q”, where “Date” contains the timestamps and “Q” contains the flow discharge values in cubic meters per second (m³/s).
[6]:
csv_filepath = "daily_discharge_30y.csv" # The csv file must be in the same folder as this notebook
Then, let’s extract the timestamps and discharge data from the CSV file. To create a Reach object, we need to convert the “Date” column to a list of datetime objects and the “Q” (flow discharge) column into a numpy array.
[ ]:
# Read CSV with automatic date parsing
input_df = pd.read_csv(csv_filepath, parse_dates=["Date"])
# Convert the "Date" column to a list of datetime objects
datetime_list = input_df["Date"].dt.to_pydatetime().tolist()
# Convert the "Q" (flow discharge) column into a numpy array
discharge_data = np.array(input_df["Q"].to_list())
Initialize a reach object¶
The only ingredient left to create a Reach is the maximum flow discharge that can be abstracted from the reach.
[8]:
Qabs_max = 3
Finally, let’s create our Reach object!
[9]:
my_reach = Reach("My Reach", datetime_list, discharge_data, Qabs_max)
Adding scenarios to the reach object¶
Minimum Flow Requirement (MFR) scenario with fixed monthly requirements¶
[ ]:
Qreq_months = np.array(
[0.1, 0.1, 0.1, 0.12, 0.12, 0.12, 0.12, 0.1, 0.1, 0.12, 0.12, 0.1]
) # values are in m3/s, representing minimum release for each month
# Create a constant scenario with these values
const_scenario = ConstScenario(
name="Constant Scenario",
description="Minimum release scenario with constant monthly values",
reach=my_reach,
Qreq_months=Qreq_months,
)
# Add the scenario to the reach
my_reach.add_scenario(const_scenario)
Proportional release scenario¶
[ ]:
prop_scenario = PropScenario(
name="Proportional Scenario",
description="Proportional scenario with arbitrary parameters",
reach=my_reach,
Qbase=0.06,
c_in=0.3,
Qreq_min=np.min(Qreq_months),
Qreq_max=1.3 * np.max(Qreq_months),
)
my_reach.add_scenario(prop_scenario)
Let’s check we added the scenarios correctly¶
[12]:
my_reach.print_scenarios()
scenarios[0]: Constant Scenario | Minimum release scenario with constant monthly values
scenarios[1]: Proportional Scenario | Proportional scenario with arbitrary parameters
Compute the released flow discharge for each scenario¶
Given the incoming flow discharge \(Q_{nat}\), the flow requirement \(Q_{req}\) and the maximum abstractable flow \(Q_{max}\), the released flow discharge \(Q_{rel}\) is computed as:
\begin{equation*} Q_{rel}= \left\{ \begin{array}{lll} Q_{nat} & \text { if } & Q_{nat} \leq Q_{req} & (4.1)\\[1ex] Q_{req} & \text { if } & Q_{req} < Q_{nat} < Q_{req}+Q_{abs,max}& (4.2)\\[1ex] Q_{nat}-Q_{abs,max} & \text { if } & Q_{nat} \geq Q_{req}+ Q_{abs,max} & (4.3)\\[1ex] \end{array} \right. \end{equation*}
Where the three cases correspond to the following:
\((4.1)\) The incoming flow \(Q_{nat}\) is lower than the flow requirement \(Q_{req}\); therefore, no water is abstracted and the released flow discharge \(Q_{rel}\) equals the incoming flow. This usually happens in low-flow periods.
\((4.2)\) There is enough incoming flow to satisfy the flow requirement, and the abstracted flow discharge \(Q_{abs}\) is lower than the maximum abstractable flow \(Q_{abs,max}\). Recall that, according to Equation \((1)\), \(Q_{abs} = Q_{nat}-Q_{rel}\) (where, in this case, \(Q_{rel}=Q_{req}\)). This is the most “common” case, where the flow requirement rule is applied straightforwardly.
\((4.3)\) The incoming flow \(Q_{nat}\) is so large that the maximum abstractable flow can be diverted while still releasing a flow rate larger than the flow requirement. This usually happens during flood events.
The piecewise function \((4.1-4.3)\) is implemented in the compute_Qrel method of the class Scenario; therefore, to compute the released flow time series for each scenario we can simply write
[13]:
for scenario in my_reach.scenarios:
scenario.compute_Qrel()
Plot the released flow discharge time series for each scenario¶

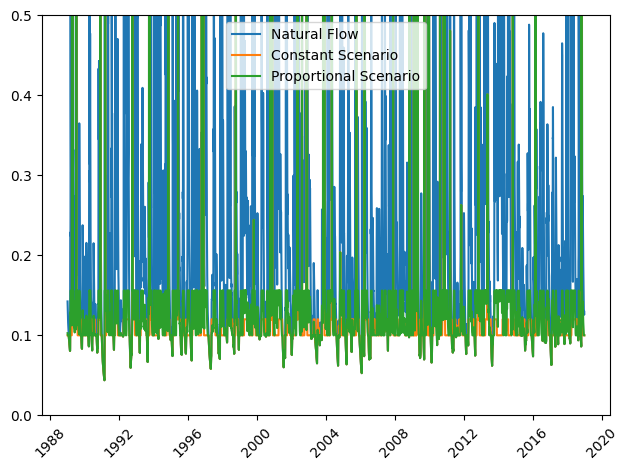

[14]:
plt.plot(my_reach.dates, my_reach.Qnat, label="Natural Flow")
for scenario in my_reach.scenarios:
plt.plot(scenario.dates, scenario.Qrel, label=scenario.name)
plt.xticks(rotation=45)
plt.legend()
plt.ylim(0, 0.5)
plt.tight_layout()
What a messy plot! Lets focus on one year only. First, let’s create a Boolean array (a mask) to filter the dates within the year 2018.
[15]:
start_date = pd.to_datetime("2018-01-01")
end_date = pd.to_datetime("2018-12-31")
mask = [(dt >= start_date) and (dt <= end_date) for dt in my_reach.dates]

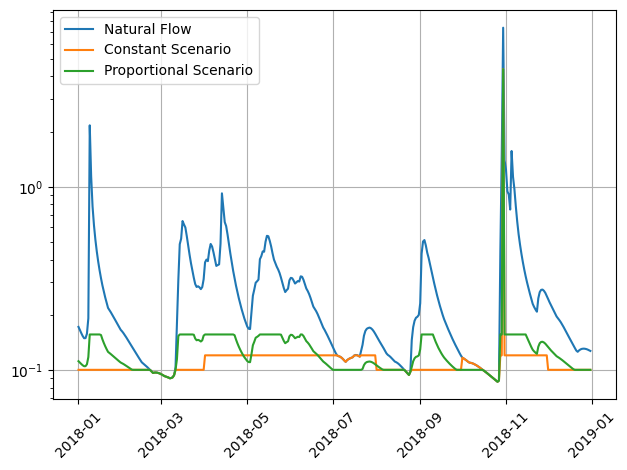

Then, let’s plot the released flow discharge for each scenario in the time interval we specified
[16]:
plt.plot(np.array(my_reach.dates)[mask], my_reach.Qnat[mask], label="Natural Flow")
for scenario in my_reach.scenarios:
plt.plot(np.array(scenario.dates)[mask], scenario.Qrel[mask], label=scenario.name)
plt.xticks(rotation=45)
plt.legend()
plt.yscale("log")
plt.grid()
plt.tight_layout()
