Tutorial 1 - Indicators of Hydrologic Alteration (IHA)

This tutorial demonstrates how to use the SARAwater package to compute the Indicators of Hydrologic Alteration (IHA) for a river reach. The IHA metrics help assess the impact of flow alterations on aquatic ecosystems.

Import libraries

import os
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import sarawater as sara

plt.style.use("stylesheet.mplstyle")

I/O paths and directories creation

input_csv_filepath = os.path.join("data", "daily_discharge_7y.csv")
min_release_filepath = os.path.join("data", "minimum_flow_requirements.csv")

Read the discharge data and create a reach object

Read the CSV data

# Read CSV with automatic date parsing
reach_df = pd.read_csv(input_csv_filepath, parse_dates=["Date"])

# Convert to list of datetime objects
datetime_list = reach_df["Date"].dt.to_pydatetime().tolist()

# Put the discharge data into a numpy array
discharge_data = np.array(reach_df["Q"].to_list())

Initialize a reach object

Qabs_max = 3
my_reach = sara.Reach("My Reach", datetime_list, discharge_data, Qabs_max)

Add scenarios to the reach object

Minimum Flow Requirement (MFR) scenario

# Read the minimum release values from CSV
minrel_df = pd.read_csv(min_release_filepath, header=None)

# Get the minimum release values (second column), convert l/s to m3/s
Qreq_months = np.array(minrel_df[1].tolist()) / 1000.0

# Create a constant scenario with these values
MFR_scenario = sara.ConstScenario(
    name="MFR",
    description="Minimum Flow Requirement scenario from CSV file",
    reach=my_reach,
    Qreq_months=Qreq_months,
)

# Add the scenario to the reach
my_reach.add_scenario(MFR_scenario)

Ecological scenario (using the built-in method)

my_reach.add_ecological_flow_scenario(
    "DE", "Ecological Flow Scenario with default parameters"
)

Scenario(name=DE, description=Ecological Flow Scenario with default parameters, reach=My Reach)

Proportional release scenario (using the built-in method)

prop_scenario = sara.PropScenario(
    name="06_30",
    description="Proportional scenario",
    reach=my_reach,
    Qbase=0.6 * np.min(Qreq_months),
    c_Qin=0.3,
    Qreq_min=np.min(Qreq_months),
    Qreq_max=np.max(my_reach.scenarios[1].Qreq_months),
)
my_reach.add_scenario(prop_scenario)

Let’s check we added the scenarios correctly

my_reach.print_scenarios()

scenarios[0]: MFR | Minimum Flow Requirement scenario from CSV file
scenarios[1]: DE | Ecological Flow Scenario with default parameters
scenarios[2]: 06_30 | Proportional scenario

Compute the released flow discharge for each scenario and compute the IHA indices (IARI and normalized IHA)

for scenario in my_reach.scenarios:
    scenario.compute_Qrel()
    scenario.compute_IHA_index(index_metric="IARI")
    scenario.compute_IHA_index(index_metric="normalized_IHA")
    scenario.compute_natural_abstracted_volumes()

Analyse the results using a ReachPlotter object

Initialize the plotter

plotter = sara.ReachPlotter(my_reach)

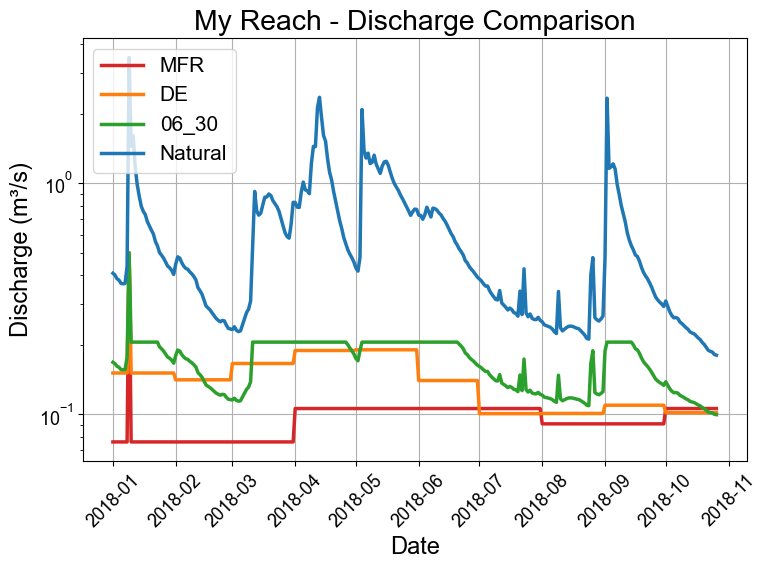

Plot samples of released flow discharge

year = 2018
start_date = f"{year}-01-01"
end_date = f"{year}-12-31"
plotter.plot_scenarios_discharge(start_date=start_date, end_date=end_date)
plt.xticks(rotation=45)
plt.tight_layout()

IHA and IARI plots

# plotter.plot_iha_parameters()
# plotter.plot_iha_boxplots()
# plotter.plot_iari_groups()
# plotter.plot_iari_summary()
# plotter.plot_cases_duration()
# plotter.plot_monthly_abstraction()
# plotter.plot_nIHA_summary()
# plotter.plot_nIHA_vs_volume()

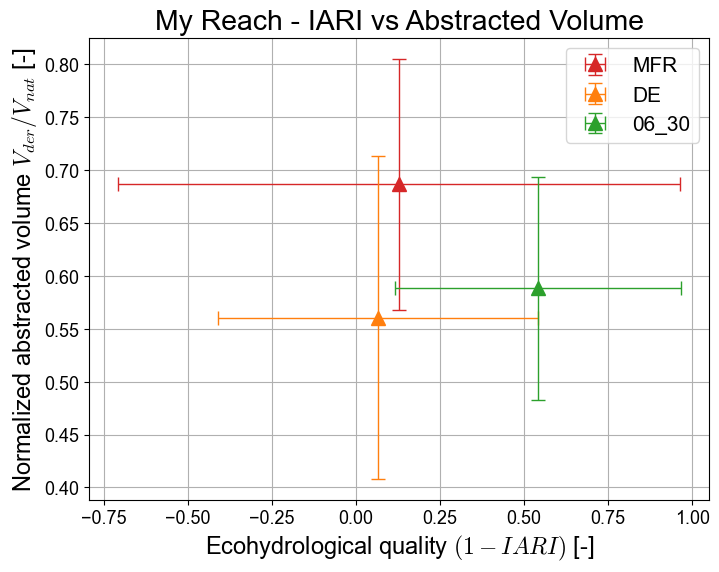

plotter.plot_iari_vs_volume(save=True)

<Axes: title={'center': 'My Reach - IARI vs Abstracted Volume'}, xlabel='Ecohydrological quality $(1 - IARI)$ [-]', ylabel='Normalized abstracted volume $V_{der}/V_{nat}$ [-]'>
